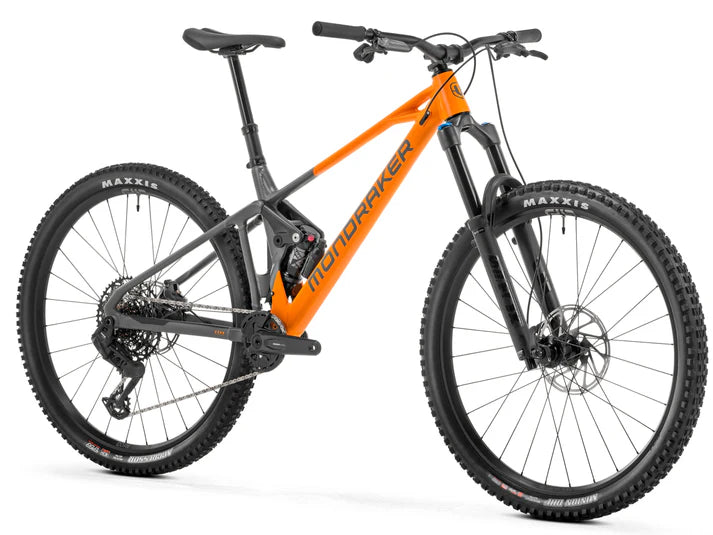

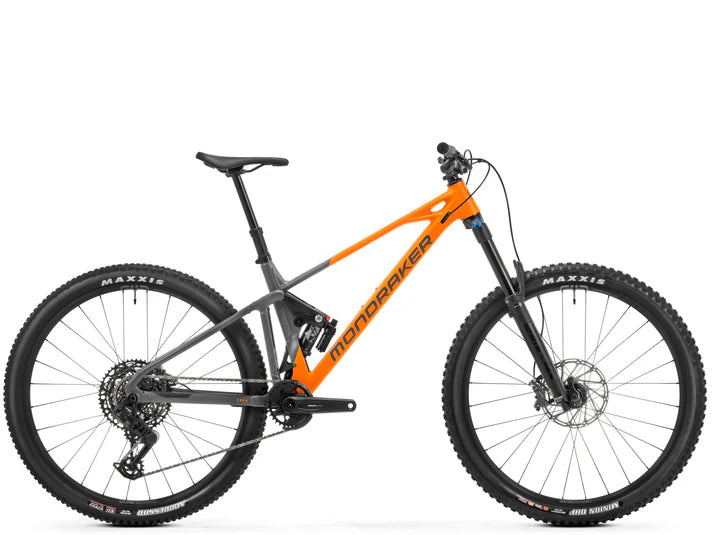

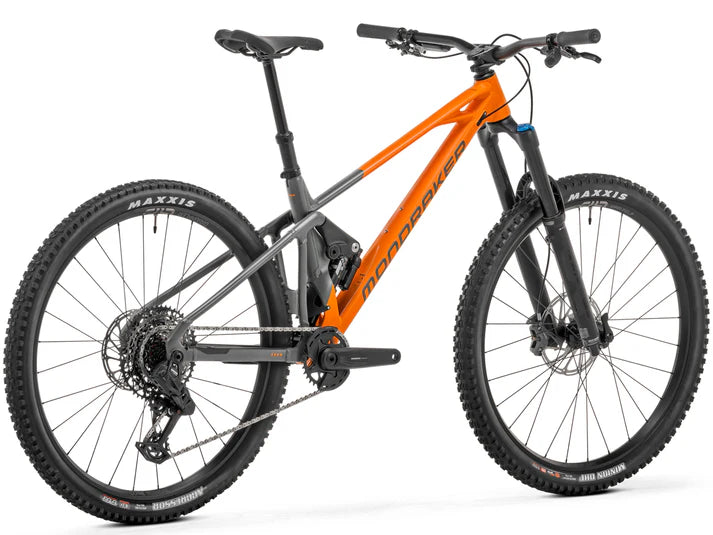

MONDRAKER 2025 FOXY R ATOMIC ORANGE XL

$4,499.99
Not seeing exactly what you want, or you'd rather deal with a real human? Give us a call or send us an email and we'll help you out. We have inventory in our physical store that might not be on our website, and we can also custom order (almost) anything!

The Full Scoop on the Mondraker Foxy R

The FOXY R is more enduro-ready than ever before. The Foxy R features Fox suspension with 160 mm of suspension up front and 150 mm of suspension at the rear. It also features a SRAM NX Eagle shifter drivetrain, DT Swiss E1900 Spline 29 wheels, SRAM G2 R brakes, and ONOFF components, most notably the Pija dropper post.

*Components subject to manufacturer changes.

Frame Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Fork Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Rear Shock Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Front Brake Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Derailleur Sram S1000 Eagle AXS T-Type, 12s
Shift Levers Sram Eagle AXS Pod, 12s
Chain Sram GX Eagle T-Type, 12s, Powerlock
Cassette Sram XS-1270, 10-52T, T-Type 12s
Crankset Sram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
Chain Ring 32T, CNC-machined alloy, T-Type
Chain Guard Spec not provided
Rims e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Front Hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front Tire Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
Rear Tire Maxxis Aggressor 29x2.3 WT, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Handlebars Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise
Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Headset Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Grips Onoff Beehive, 1lock-on, 135mm
Saddle SDG BEL-AIR 3.0, LPU foam, steel rails
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
