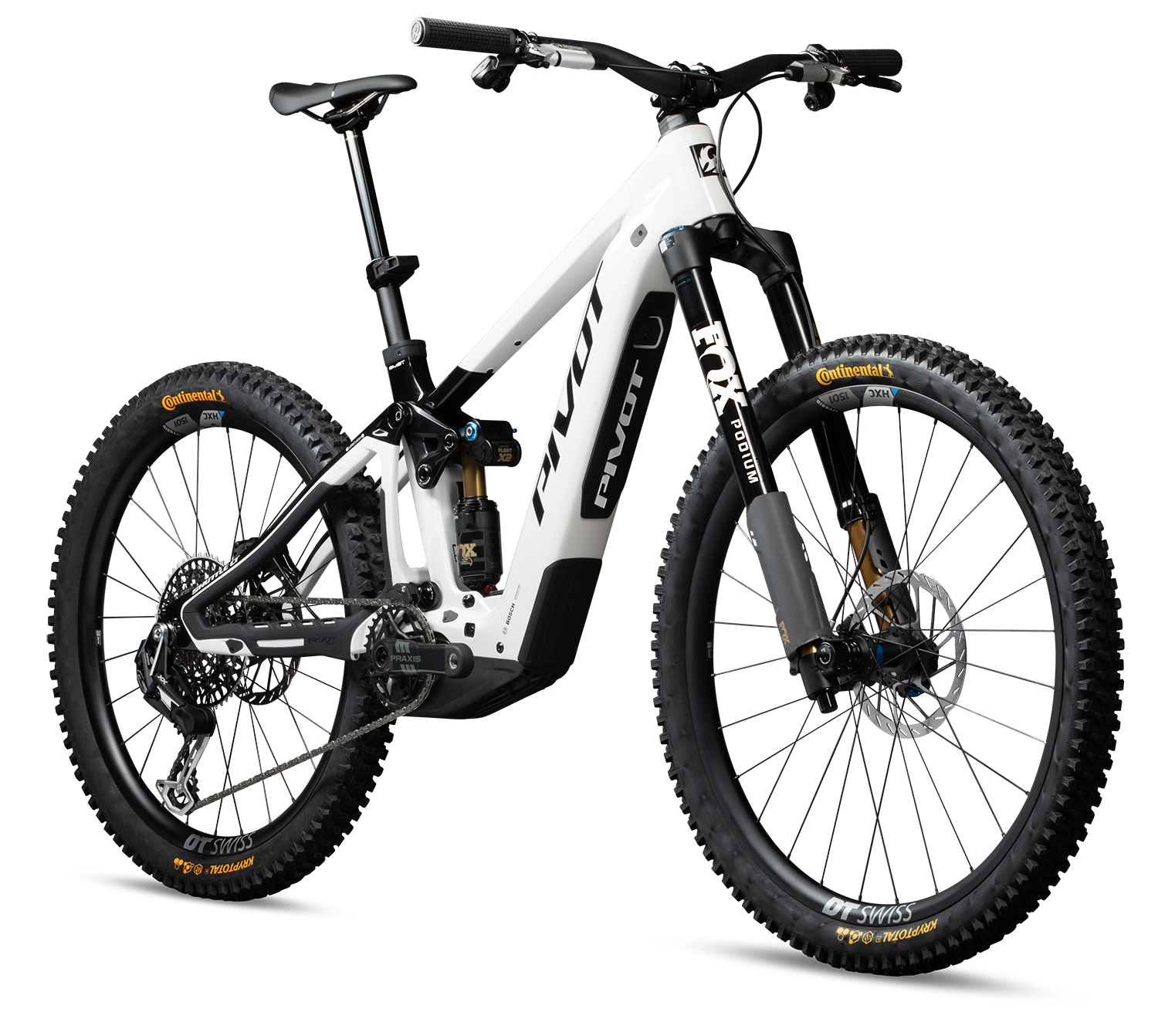

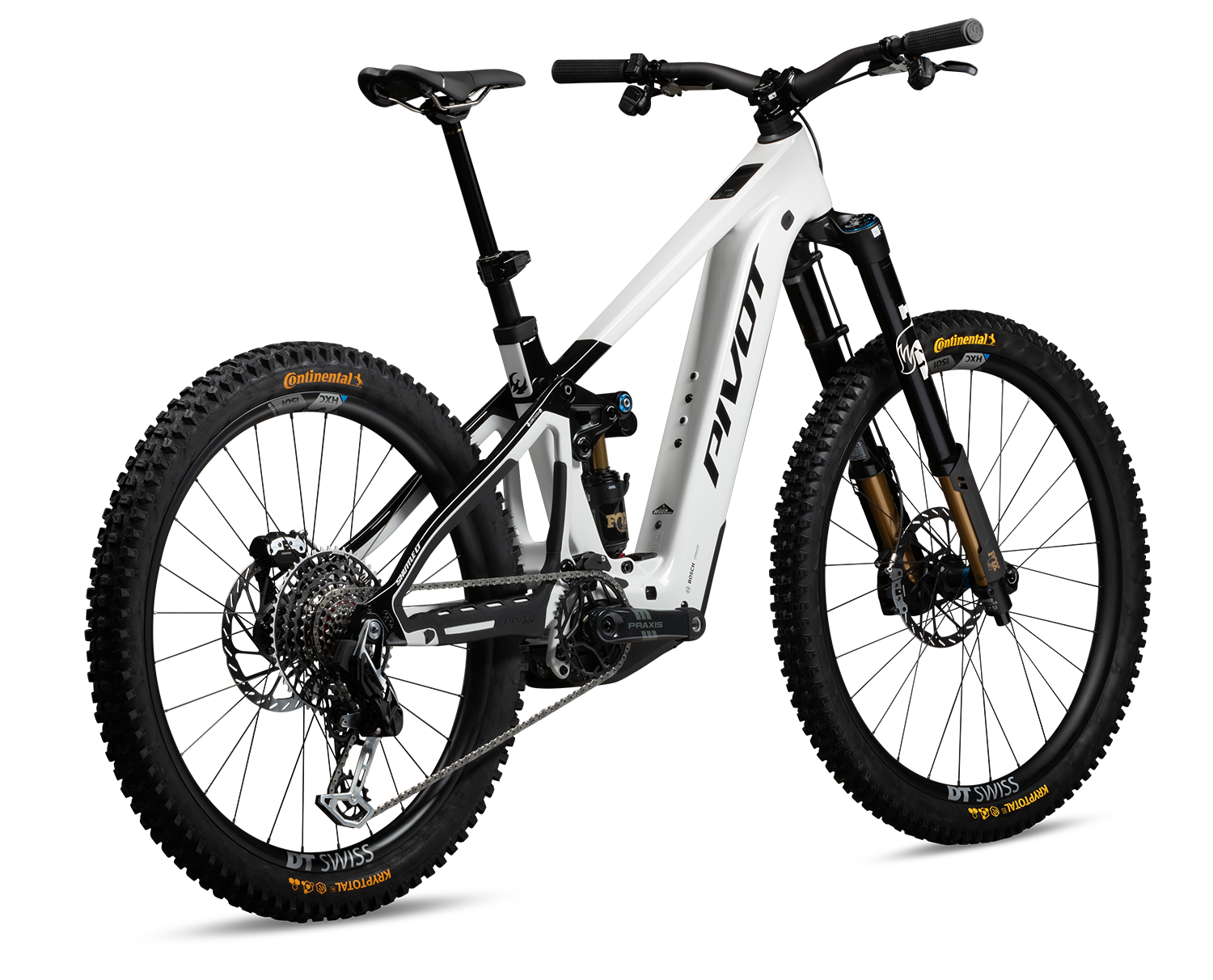

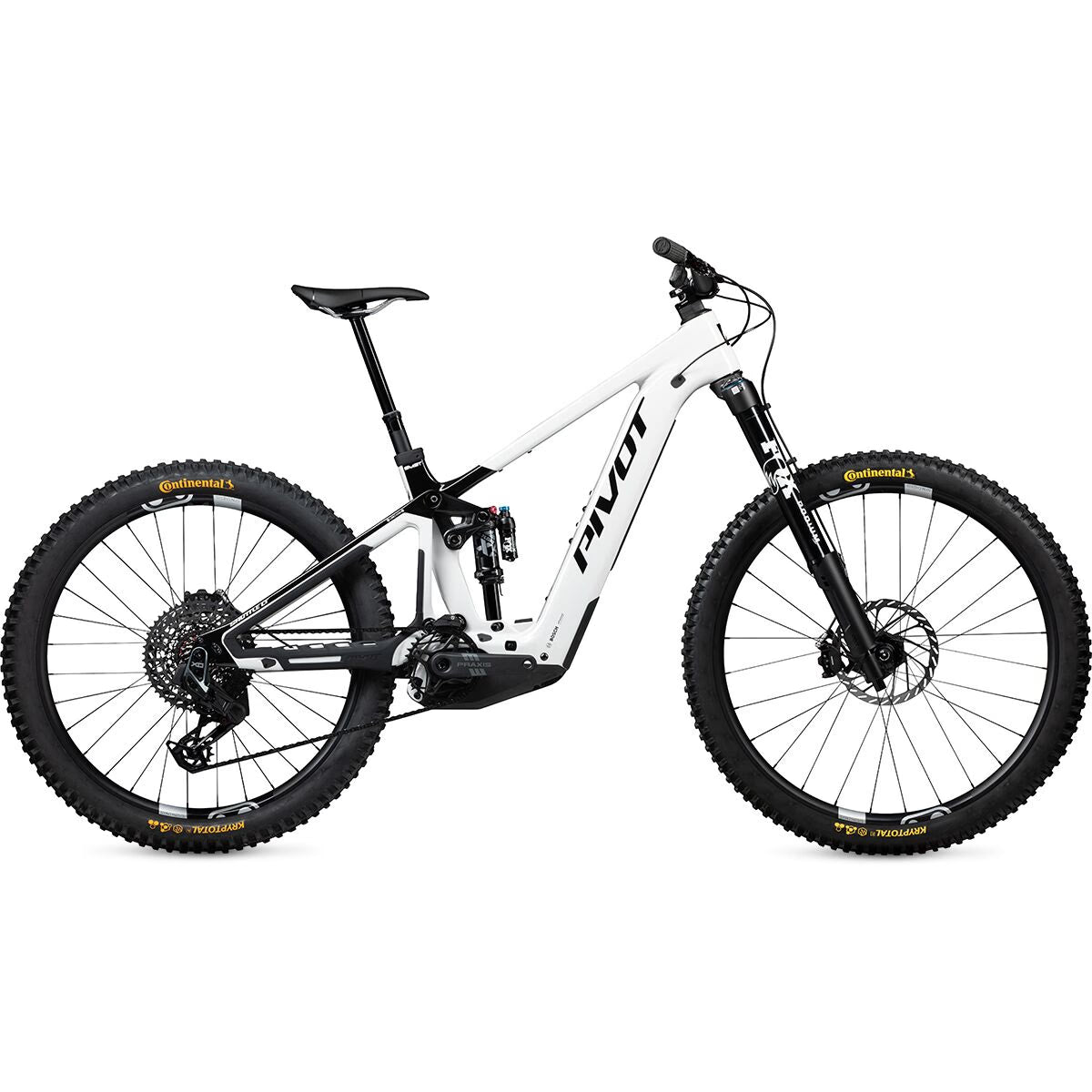

PIVOT SHUTTLE LT PRO X0 EAGLE TRANSMISSION

$12,599.00
Color: Stone Cold White
Size

Buy online and pickup in our Boulder, CO showroom.
(Shipping not available on this product.)
Not seeing exactly what you want, or you'd rather deal with a real human? Give us a call or send us an email and we'll help you out. We have inventory in our physical store that might not be on our website, and we can also custom order (almost) anything!

The Shuttle LT is enduro – unleashed, electrified and honed to perfection. It channels chaos and control through a long-travel chassis shaped by enduro’s cutting edge of design. It descends with precision that’s more surgical than savage, cutting through terrain with quiet authority and razor-sharp focus. This is enduro electrified, designed for disorder, engineered for the unruly.

FEATURES

  • Ultra light Hollow Core carbon frame
  • Featuring Bosch’s Gen 5 Performance Line CX (Ride) and CX Race motors (Pro & Team)
  • Long-range 800Wh battery on all build levels
  • Bosch 250wh PowerMore range extender compatible
  • Kiox 400C display (Pro & Team) with Wireless Bosch remote

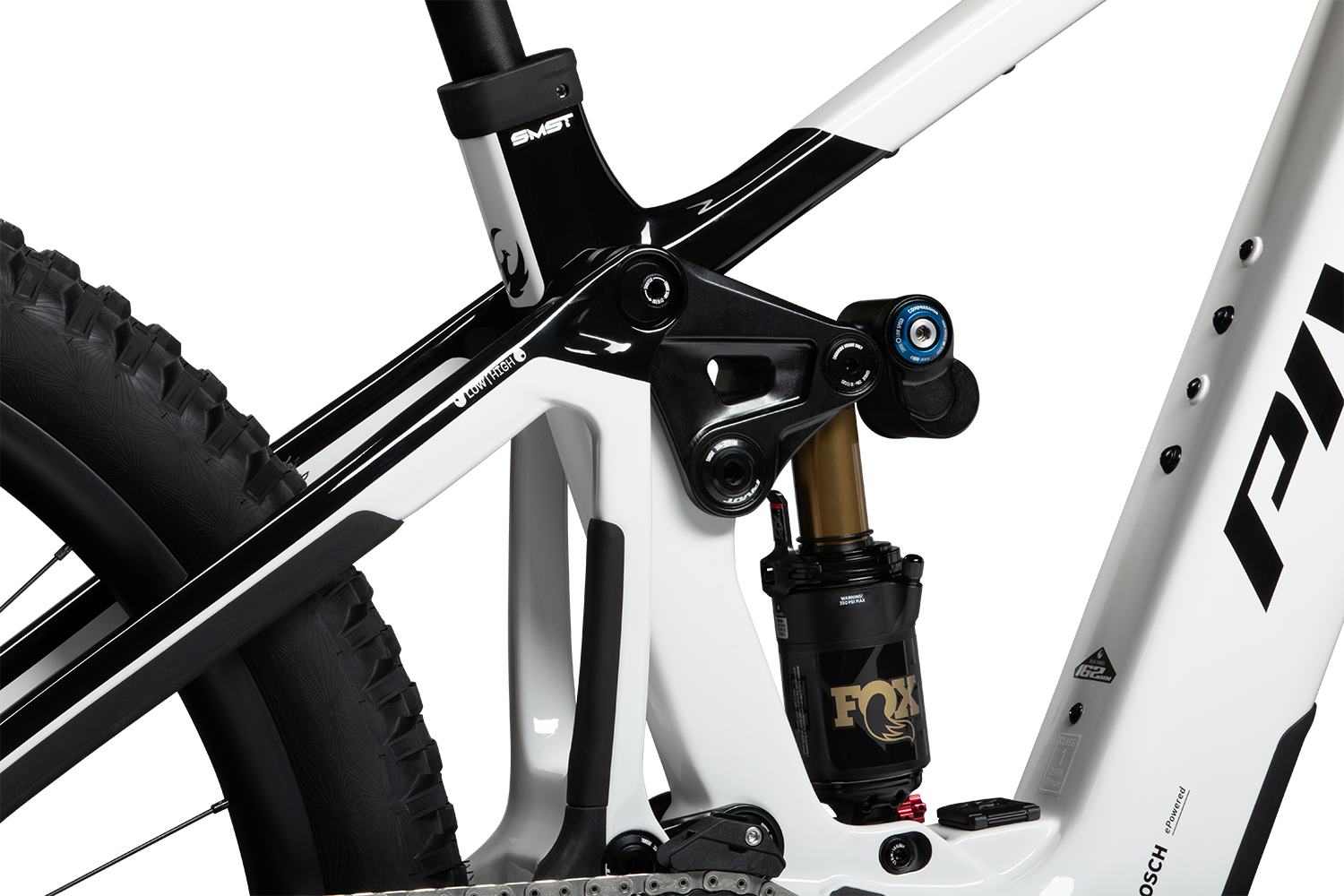

  • Patent pending Slacky McSteepTube(TM) adjustable seat tube angle
  • Geo flip chip via upper link mount
  • Progression flip chip via lower shock mount
  • Mixed-wheel setup
  • Pivot Dock Tool system compatible
  • Water bottle clearance on all sizes
  • Injection molded rubberized frame protection
  • Full internal routing with Pivot cable port system

TECH SPECS

Frame Material Carbon
Suspension DW-link

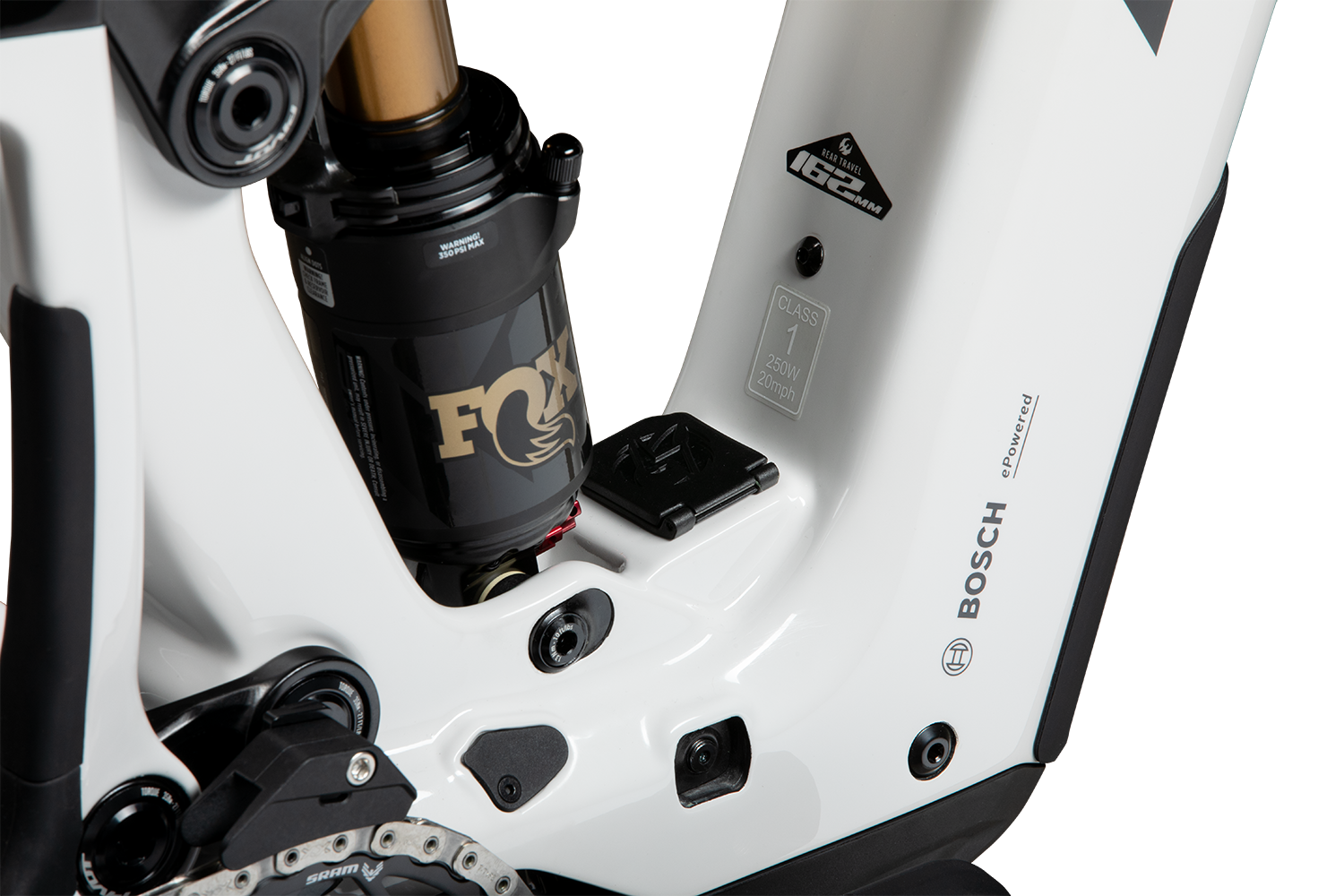

Rear Shock Fox Performance Elite Float X, 162mm
Fork Fox Performance Elite Podium, 44mm offset, GRIP X2 damper, 170mm
Headset Pivot Precision Sealed Cartridge
Shifters SRAM AXS Pod Controller
Rear Derailleur SRAM X0 Eagle Transmission
Computer Bosch Kiox 400c

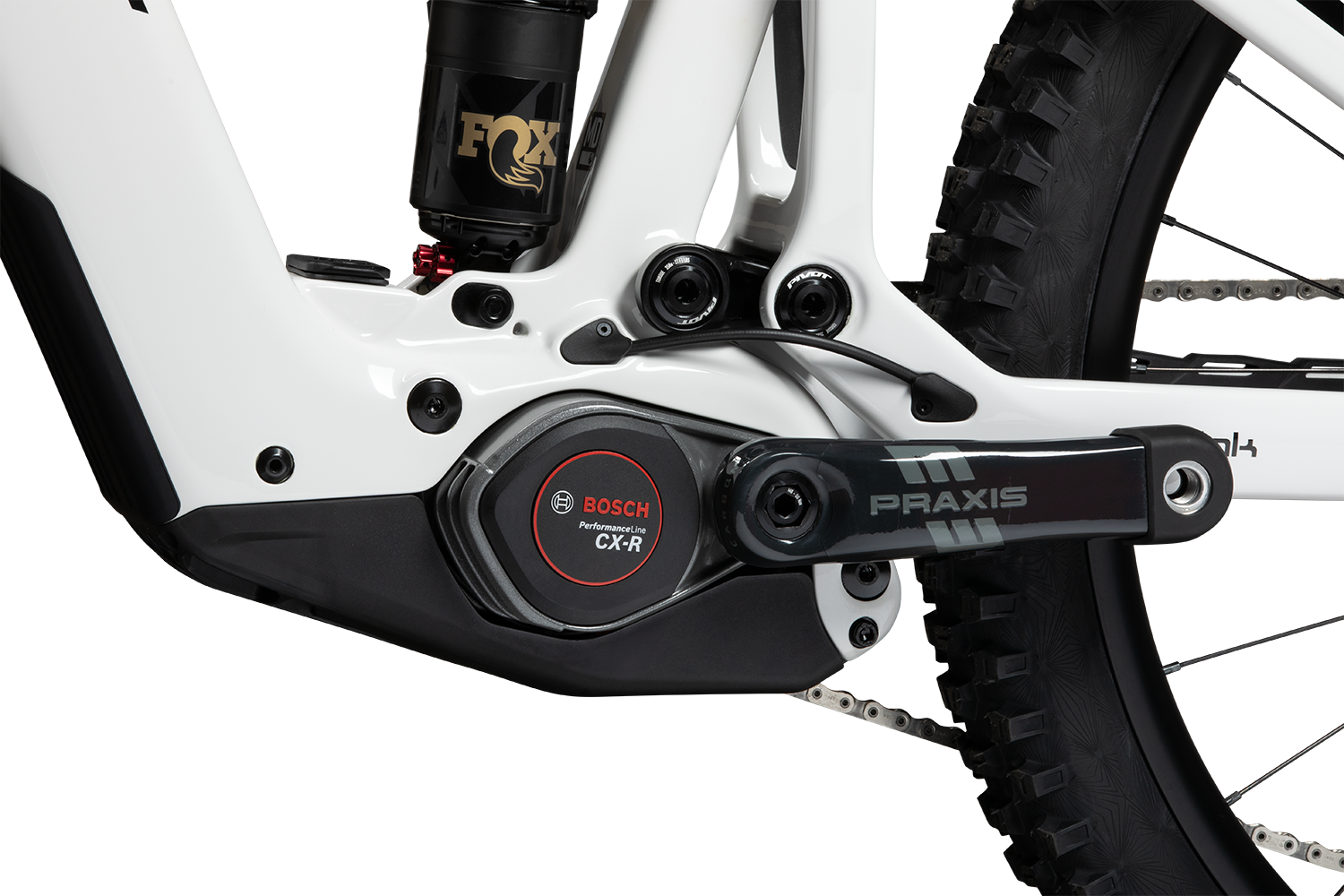

Drive System Bosch Gen 5 Performance Line CX Race Edition
Battery Energy 800Wh
Max Torque 100Nm
Max Speed Class 1 (up to 20mph)
ISCG Tabs Yes
Crankset Praxis Alloy eCranks E-MTB
Chainring Sizes 34t
Crank Arm Length 160mm
Cassette SRAM GX 1275 Eagle Transmission
Chain SRAM X0 Eagle Flattop (12-speed)
Brakeset SRAM Maven Silver 4-piston
Brake Type Hydraulic disc
Rotors SRAM HS2 Centerlock (200mm)
Handlebar Phoenix Team Carbon
Handlebar Rise Small: 20mm, Medium–XLarge: 35mm
Handlebar Width 780mm
Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro V2
Stem Length Small–Large: 40mm, X-Large: 50mm
Saddle Pivot Ride E-Bike
Seatpost OneUp Dropper Post V3
Seatpost Length Small: 150mm, Medium: 180mm, Large–XLarge: 210mm
Front Axle 15 x 110mm Boost
Rear Axle 12 x 157mm boost
Tires Continental Kyrptotal Super Soft Compound Enduro
Tire Size Front: 29 x 2.4in, Rear: 27.5 x 2.6in
