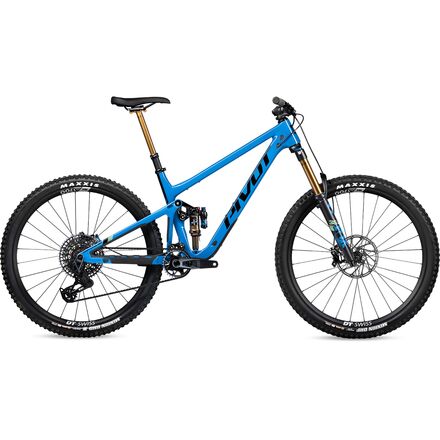

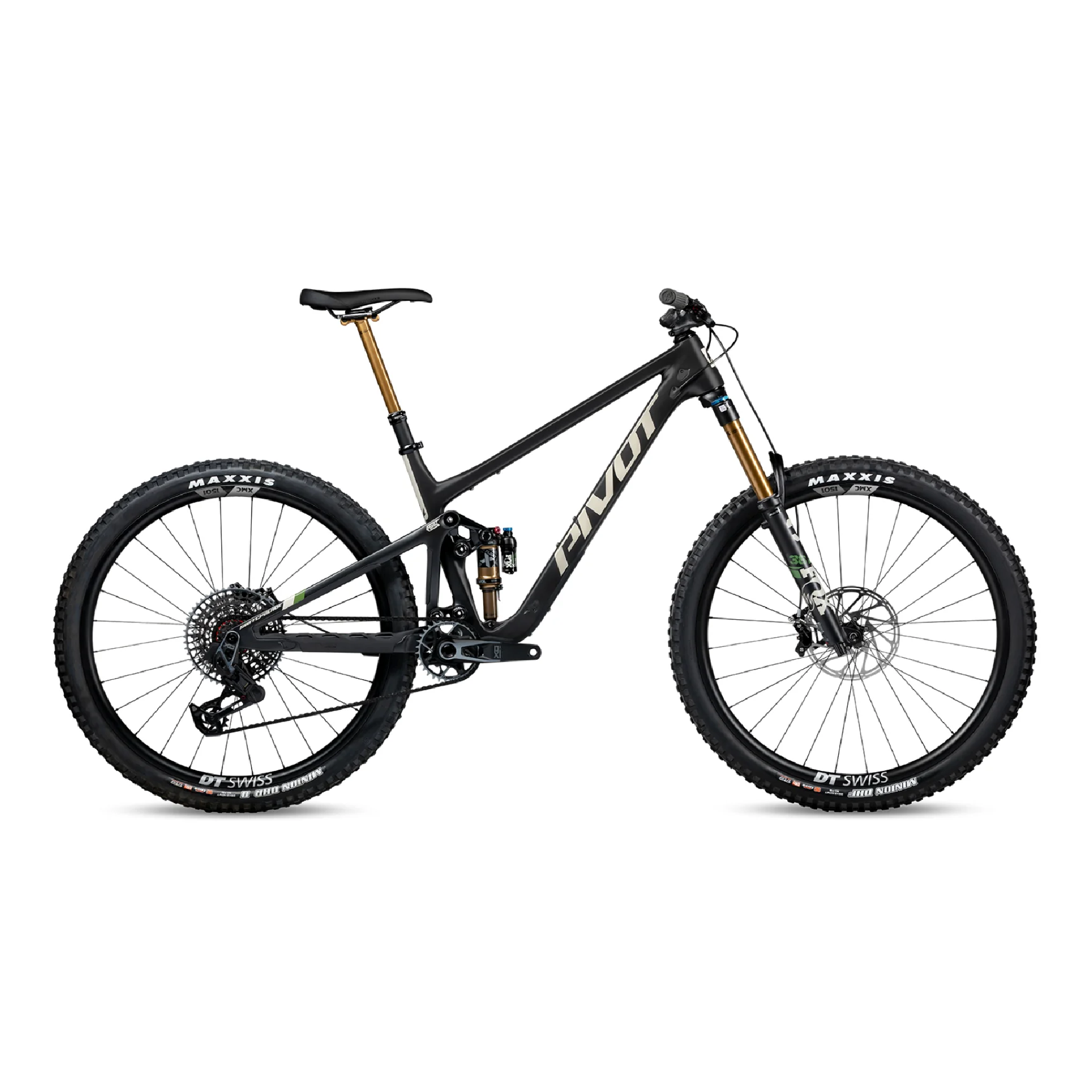

PIVOT 2025 SWITCHBLADE PRO X0 AXS T-TYPE

$8,699.99
Color: Tanzanite Carbon View - Carbon Raw (Matte)
Size

Buy online and pickup in our Boulder, CO showroom.
(Shipping not available on this product.)
Not seeing exactly what you want, or you'd rather deal with a real human? Give us a call or send us an email and we'll help you out. We have inventory in our physical store that might not be on our website, and we can also custom order (almost) anything!

The new Switchblade has a slacker head angle, steeper seat angle, increased reach and a longer wheelbase than its predecessor. Size-specific chainstays are tucked in and responsive but grow incrementally longer on larger frames. This translates to added stability at warp speeds while still maintaining the snap and pop that is ingrained in the Switchblade’s DNA.

FEATURES:

  • Ultra-Light Hollow Core Carbon Frame.
  • Size Specific Chainstays
  • 142mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric air shock.
  • Equipped with a 44mm offset 160mm-travel Fox 36 Grip or Grip2.
  • Flip Chip for on-trail geometry customization.
  • Compatible with both 29, 27.5+" and 27.5” rear/29” front (mullet) wheel sizes without compromise thanks to the Flip chip’s adjustable geometry feature
  • Large Water Bottle Clearance on all sizes.
  • Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.
  • Hassle free full internal routing with Pivot cable port system.
  • Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling.

SPECS:

Frame Switchblade V6
Fork Fox Factory 36 29”, 44mm offset, GRIP2 - 160mm
Rear Shock Fox Factory Float X
Rims/Wheels DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29” | F - 15x110 / R - 12x157
Hubs DT350
Spokes N/A
Tires F - Maxxis Minion DHF 29” x 2.5” | R - Maxxis Minion DHRII 29” x 2.4”
Crankset Sram X0 Eagle DUB
Chainrings 32t
Chain Guide N/A
Bottom Bracket
 N/A
Chain Sram X0 Eagle 12-Speed Flat Top
Rear Derailleur Sram X0 Eagle Transmission 12-Speed
Cassette/Rear Cogs
 Sram X0 1295 Eagle Transmission 10-52t
Shifters Sram AXS Pod Controller
Handlebars Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), 800mm (XL)
Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail
Brakes Sram Code RSC 4-piston
Pedals N/A
Saddle Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Volt Pro (Medium Width) (MD-XL)
Seat Post Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG-XL)
*Product specifications are subject to change without notice.
