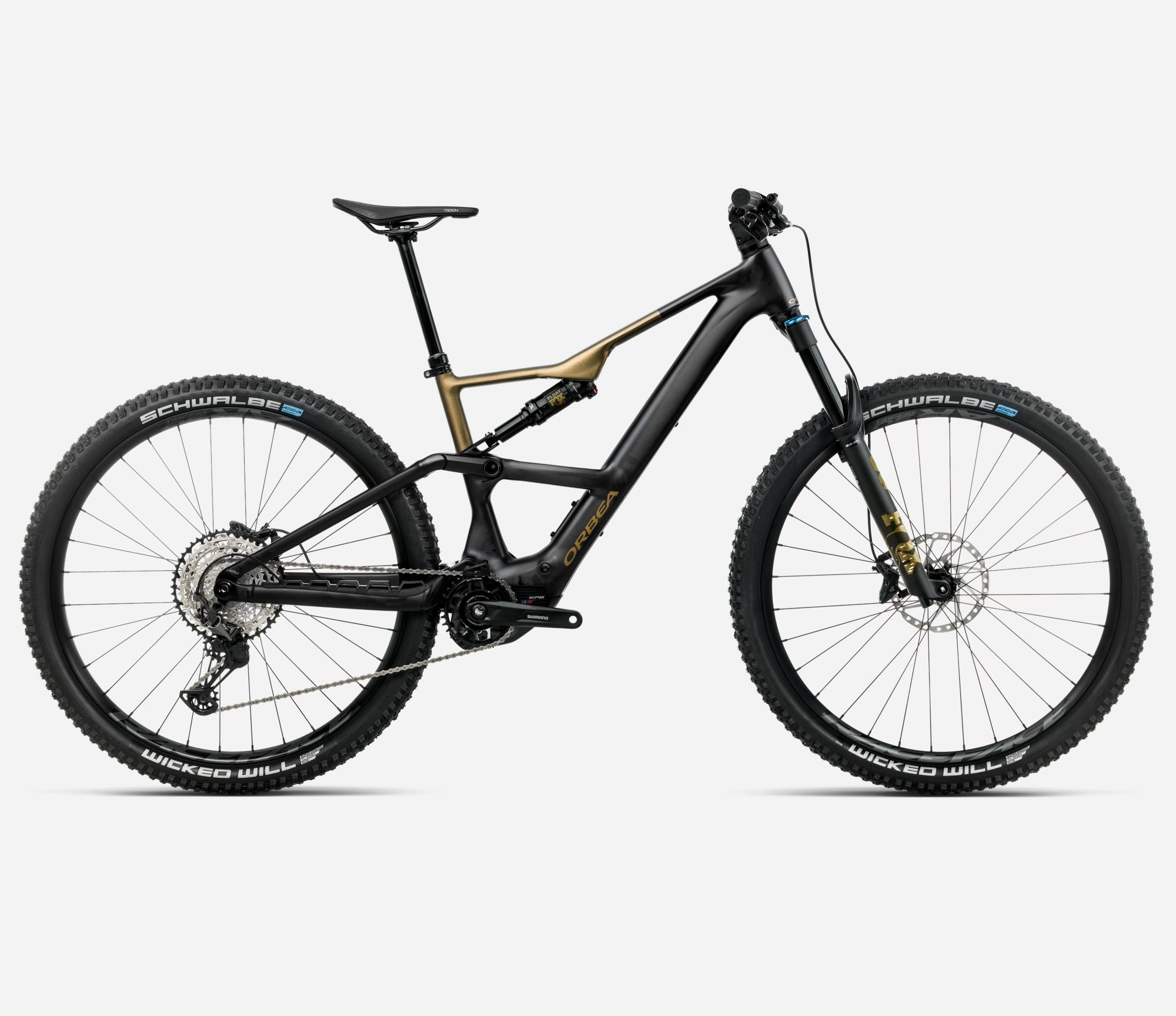

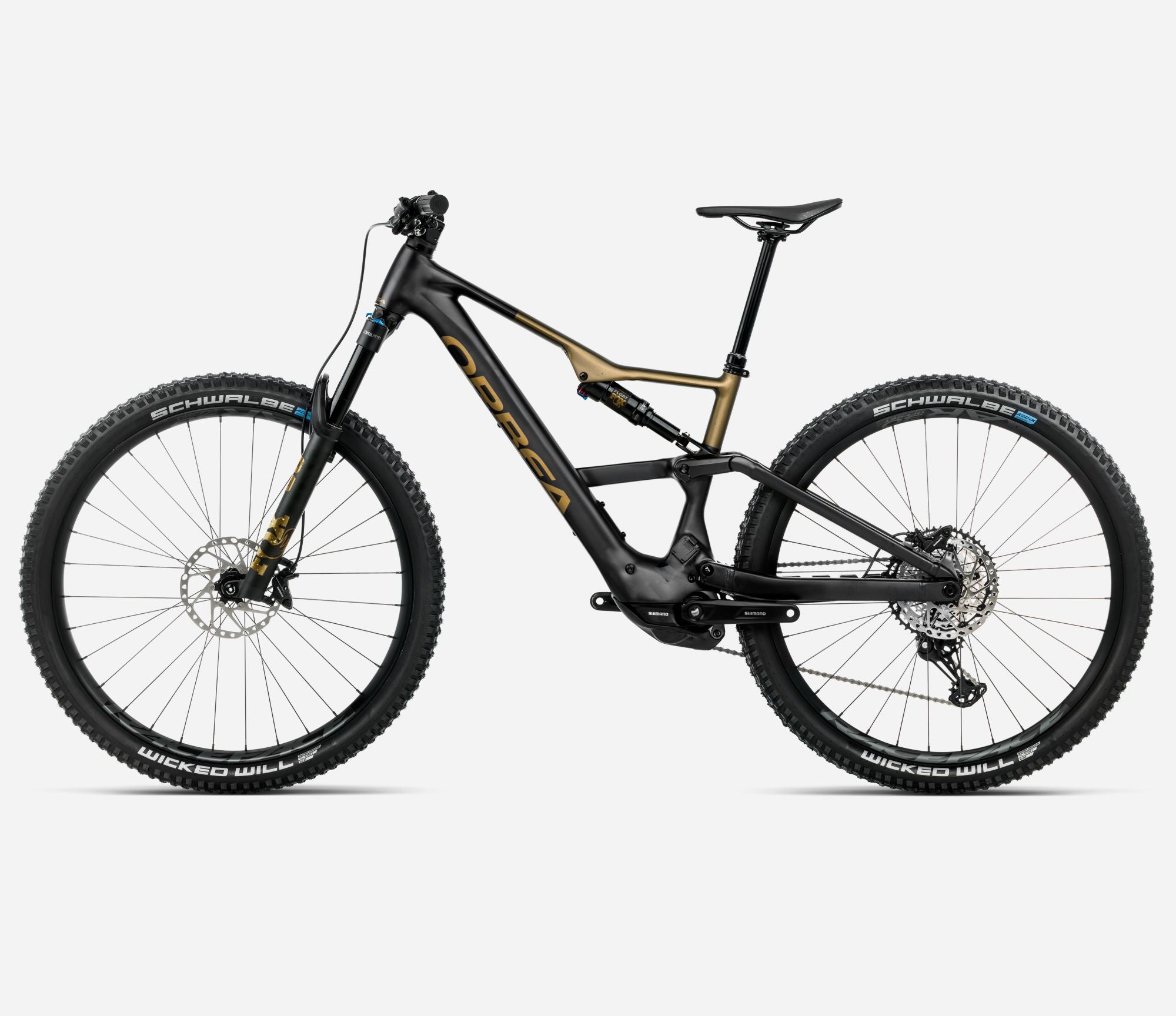

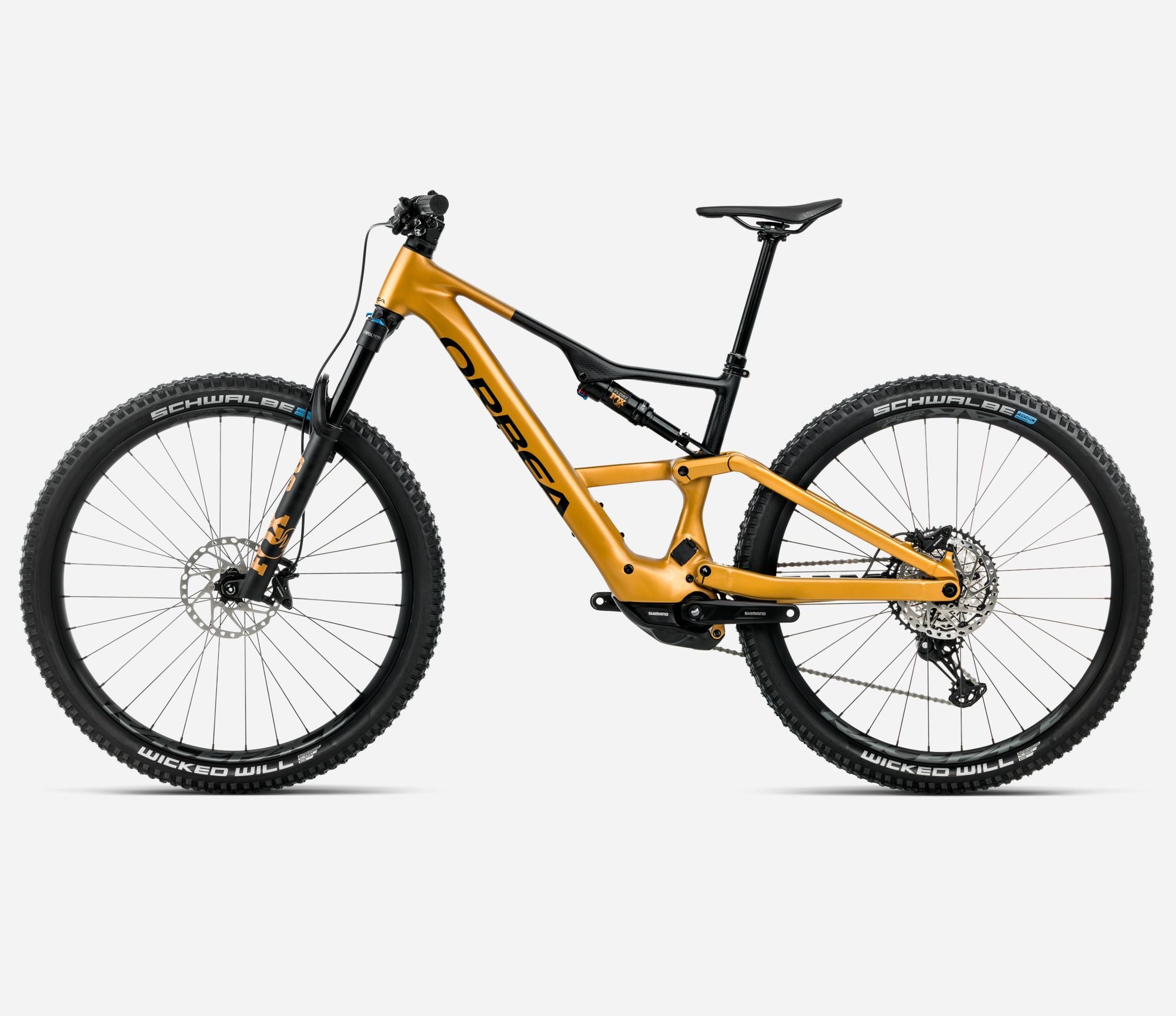

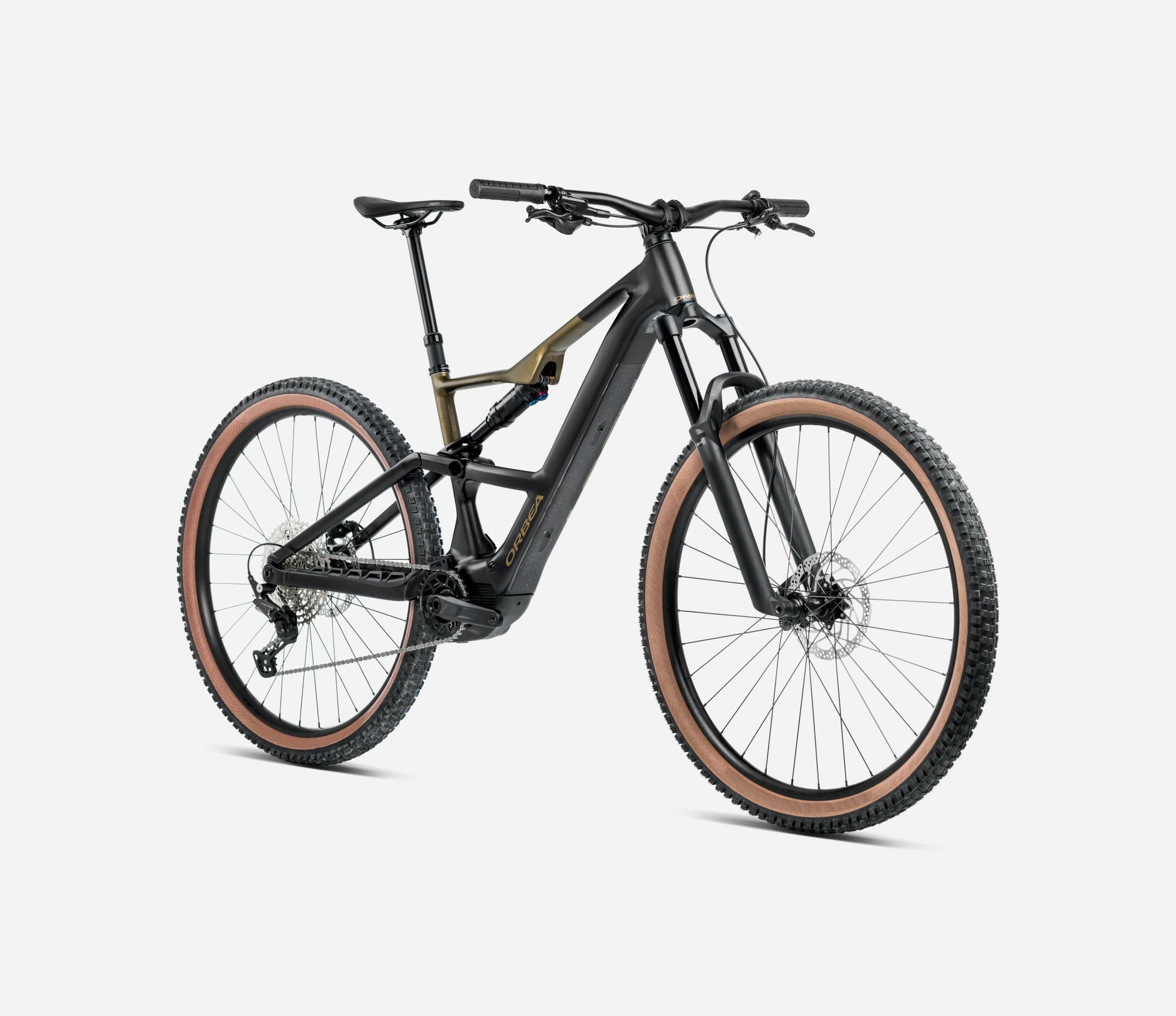

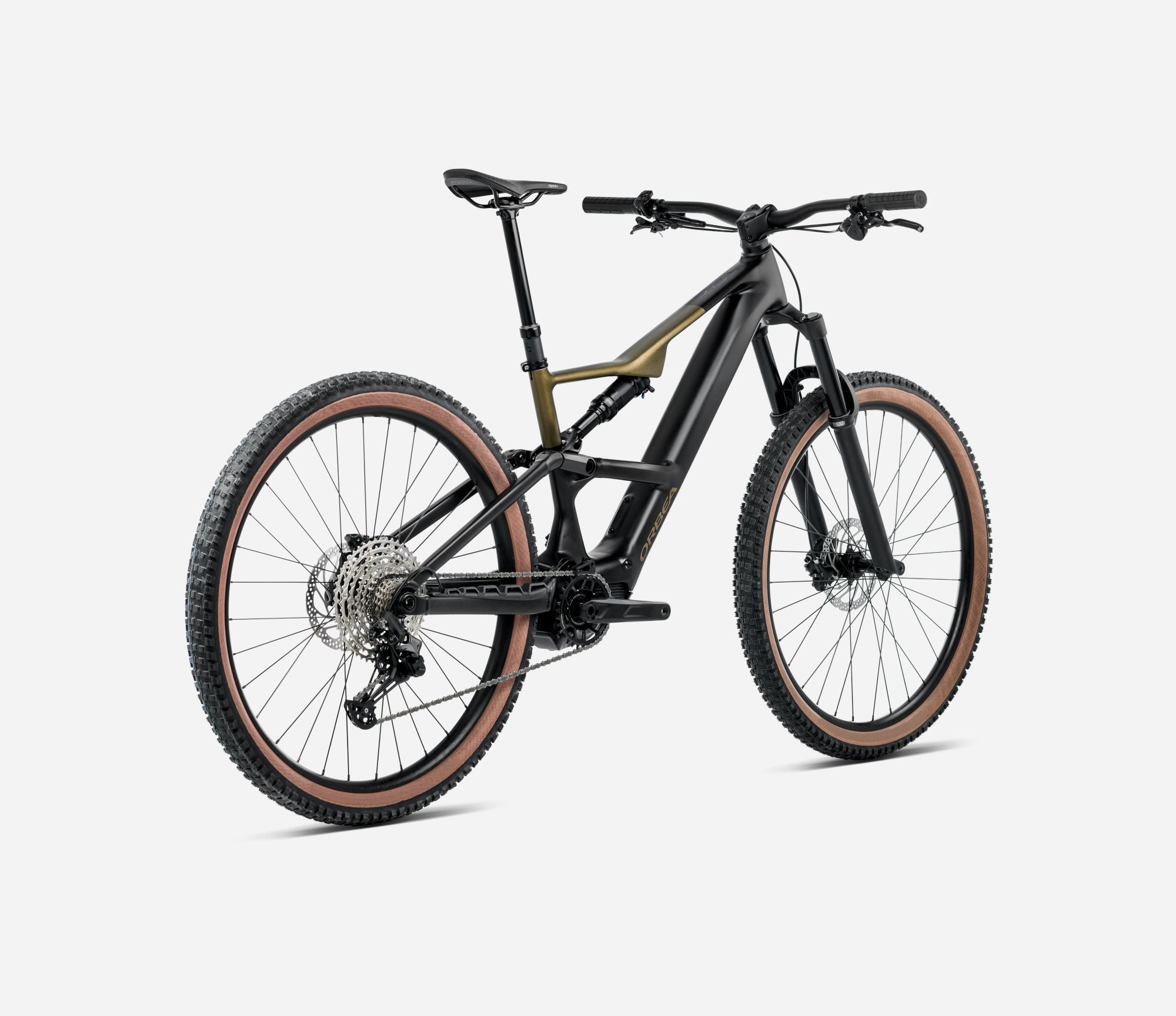

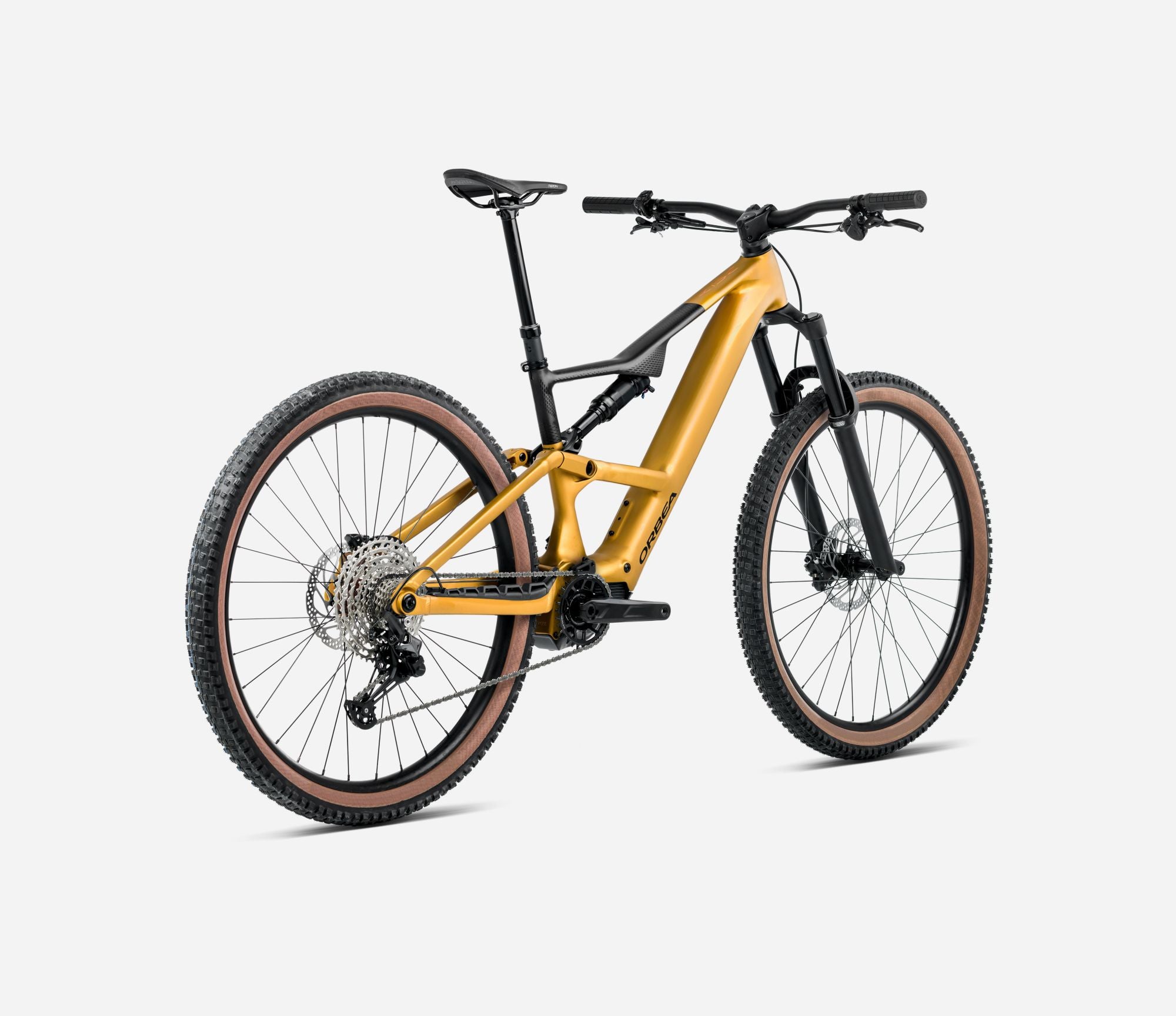

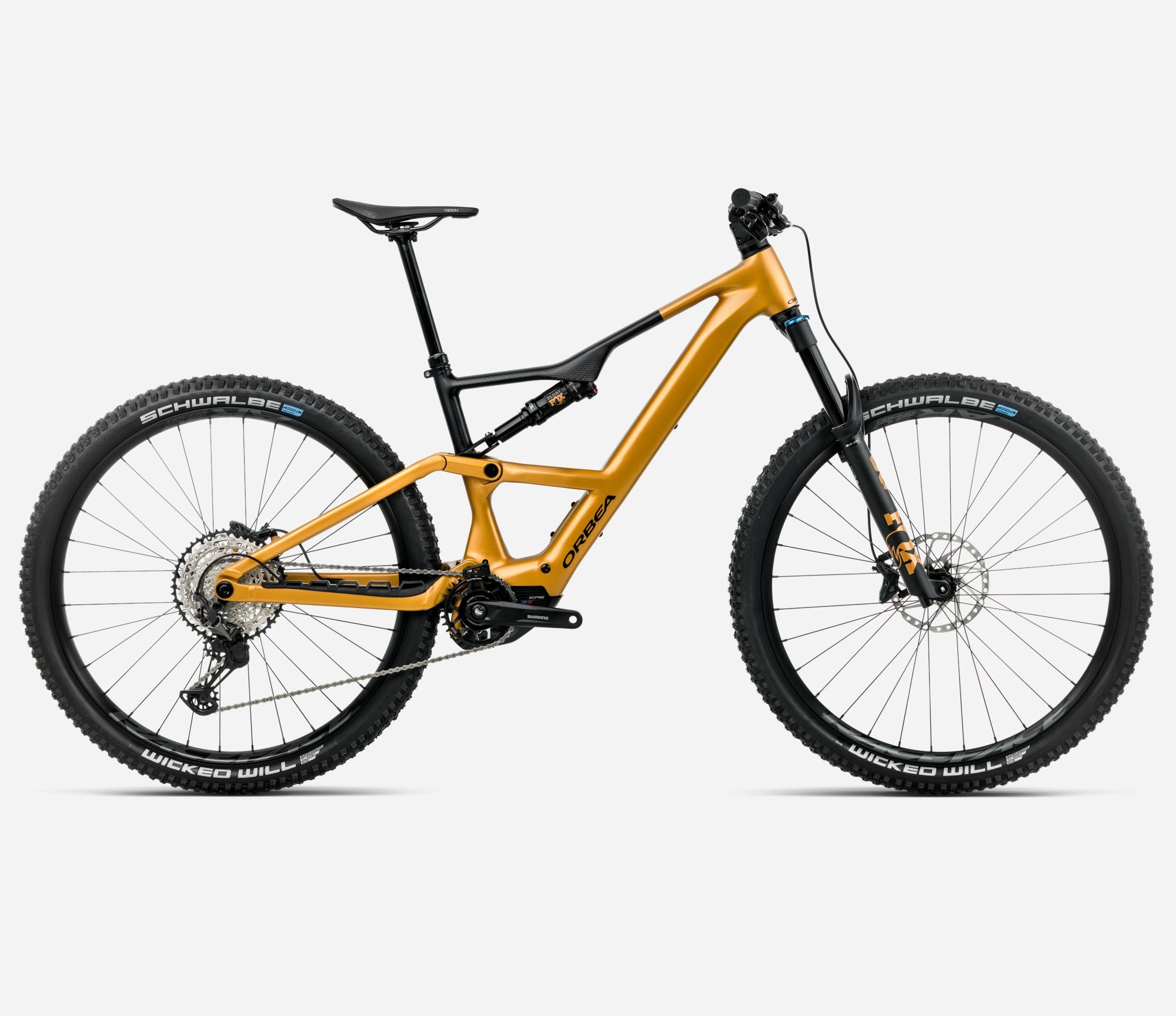

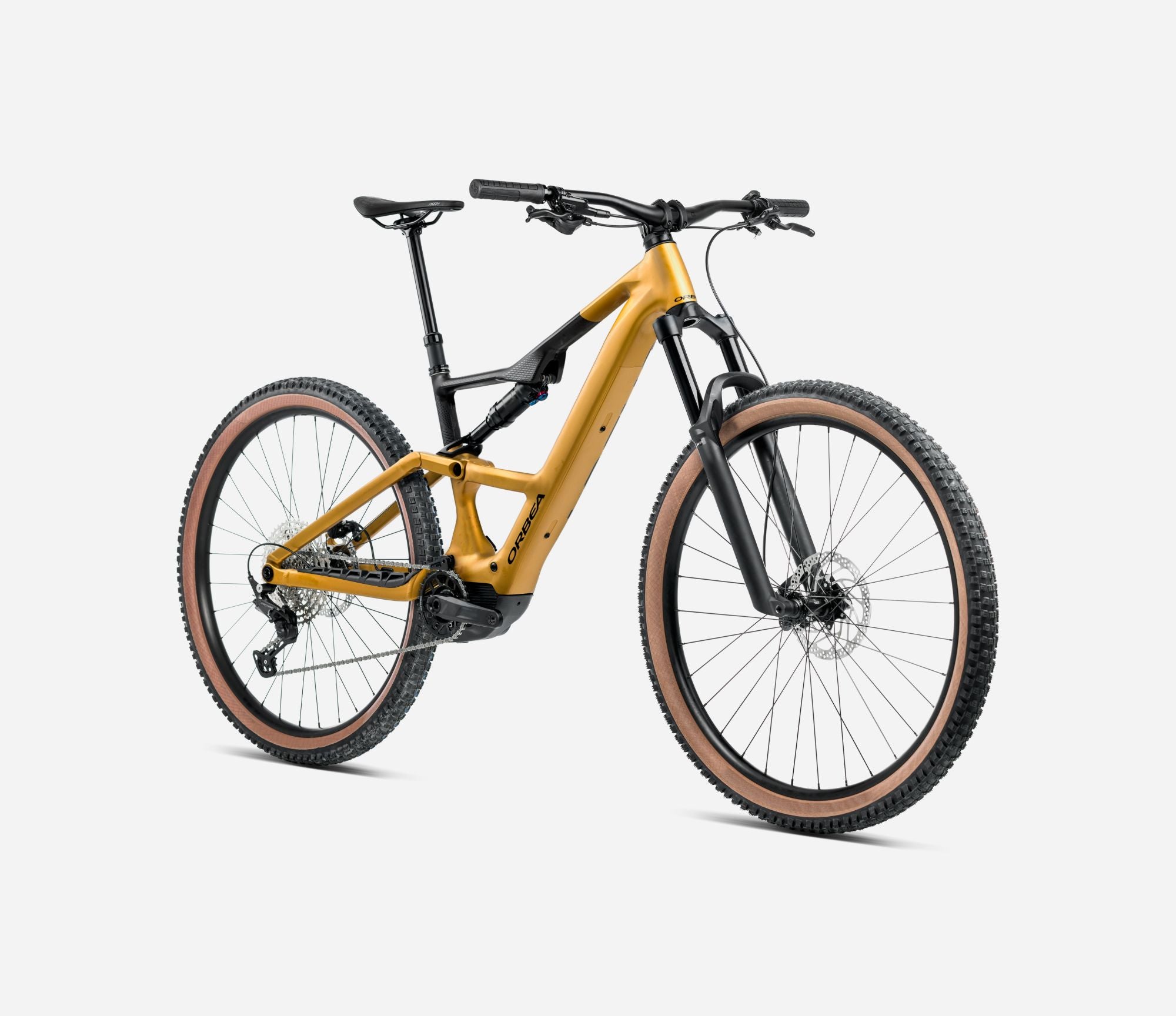

ORBEA RISE SL H10 20MPH

$6,188.00
Color: Bumblebee Yellow-Black (Matt)
Size
Not seeing exactly what you want, or you'd rather deal with a real human? Give us a call or send us an email and we'll help you out. We have inventory in our physical store that might not be on our website, and we can also custom order (almost) anything!

More bike, Less E! A bike that works with you to turn every trail, feature, and corner into pure joy. Low weight and natural assistance mean lightning reflexes and fun handling that connect you to the trail.

FEATURES

  • Light and Agile Rise rewrites the rulebook on lightweight ebike handling with a playful and fun ride.
  • RS Tuned Assistance - Power Where It Counts. Our RS tune balances full torque with natural delivery, saving energy when it’s not needed and responding powerfully when the trail demands it.
  • The Future of Control Our RS Control System removes barriers between you and your bike, making every ride more intuitive, connected, and fun.

TECH SPECS

Frame Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
Shock Fox Float Performance 2-Pos Evol LV custom tune 210x50mm
Fork Fox 36 Float SL Performance 140, Grip, 3-Pos, 15x110
Steerer Tube Alloy 1-1/2", Black Oxidated Bearing
Battery Orbea Internal 630Wh
Range Extender N/A
Motor Shimano EP600 RS Gen2 MC
Display N/A
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote EN600-L
Chainring e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Crank Shimano Steps EM600
Shifters Shimano SLX M7100 I-Spec EV
Cassette Shimano CS-M7100 10-51t 12-Speed
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Chain Shimano M6100
Chainguide Orbea eBike chainguide
Handlebar OC Mountain Control MC31, Rise20, Width 800
Stem OC Mountain Control MC20, 0º
Computer Mount OC Computer Mount CM-05, Garmin/Sigma
Brakes Shimano M6120 Hydraulic Disc
Rotors Shimano RT64 Rotors 180mm front / 180mm rear
Brakes Configuration N/A
Wheels Race Face AR 30c Tubeless Ready
Tires

Front: Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown

Rear:Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever Shimano SL-MT500 I-Spec EV
Saddle Fizik Terra Ridon X5 145mm
Lights N/A
Tools N/A
