32% off

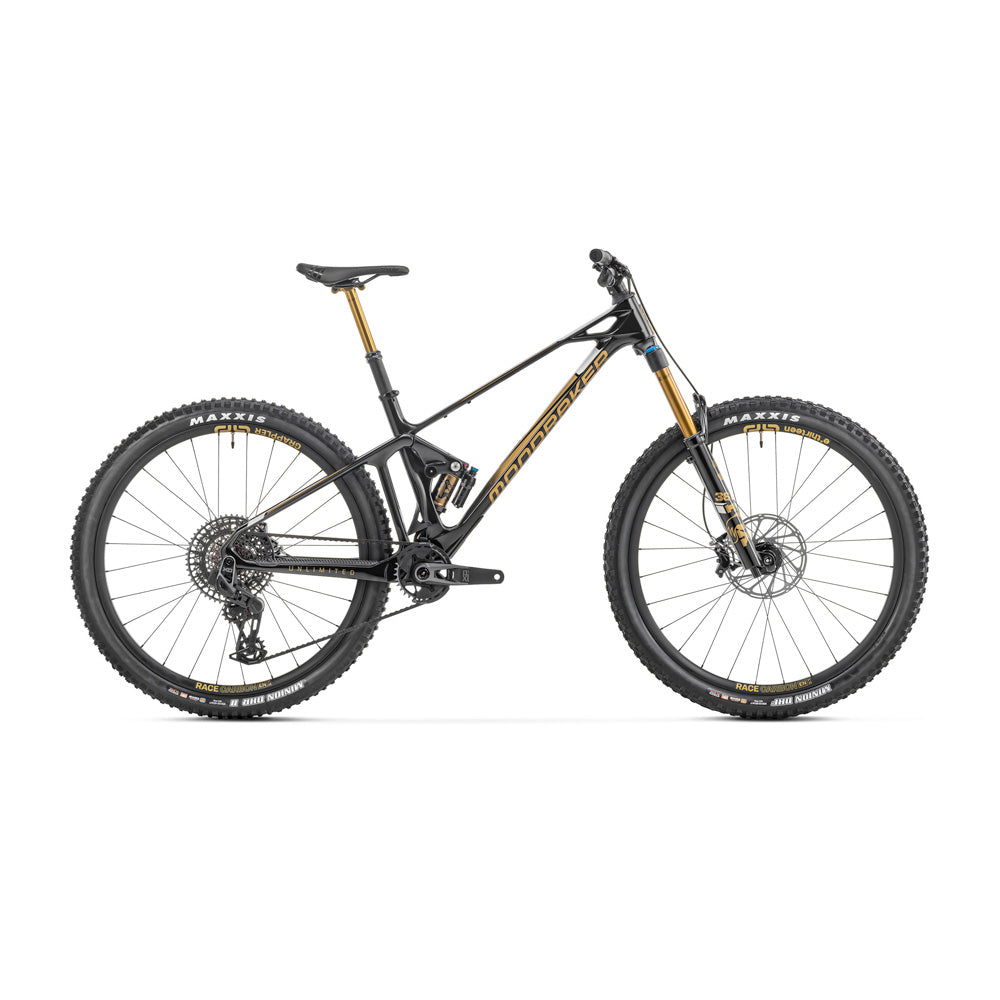

MONDRAKER FOXY CARBON UNLIMITED 20TH ANNIVERSARY

$7,500.00 $10,999.00
Color: Black/White/Gold
Size
Not seeing exactly what you want, or you'd rather deal with a real human? Give us a call or send us an email and we'll help you out. We have inventory in our physical store that might not be on our website, and we can also custom order (almost) anything!

FOXY CARBON UNLIMITED 20th ANNIVERSARY arrives to commemorate 20 years of FOXY with a limited edition of 20 numbered units for the entire world, inspired by the aesthetics and design of 2013’s FOXY XR; our first model with Forward Geometry.

FEATURES

  • There will be just 20 of the bikes manufactured and sold worldwide
  • Paint job inspired by the 2013 Foxy XR
  • Kitted out with Fox Factory suspension front and rear, SRAM’s XO Eagle AXS T-Type drivetrain and SRAM Code Silver Stealth brakes
  • Also comes with e*Thirteen Grappler carbon wheels and a Fox Transfer dropper post

TECH SPECS

Frame FOXY 20TH anniversary custom paint Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Rear Shock Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings Light compression, light rebound, air volume spacer 0.6
Fork FOXY 20TH anniversary custom paint Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem Onoff Krypton FG 10mm, CNC, 31.8mm barbore
Handlebar Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips Onoff Desert, 1lock-on, 135mm
Seatpost Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle SDG BEL-AIR 3.0 FOXY 20TH anniversary custom desing, LPU foam, steel rails
Front Brake Sram Code Silver Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake Sram Code Silver Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Hub e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front Tire Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear Tire Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm CL 55
Rings 2T, CNC-machined alloy, T-Type
Bottom Bracket Sram DUB BSA, sealed bearings, 73mm, wide
Chain Sram X0 Eagle T-Type, 12s, Powerlock
Rear Derailleur Sram X0 Eagle AXS T-Type, 1x12s
Shift Levers Sram Eagle AXS Pod MMX, 12s
Casette Sram XS-1297, 10-52T, T-Type 12s



View details
