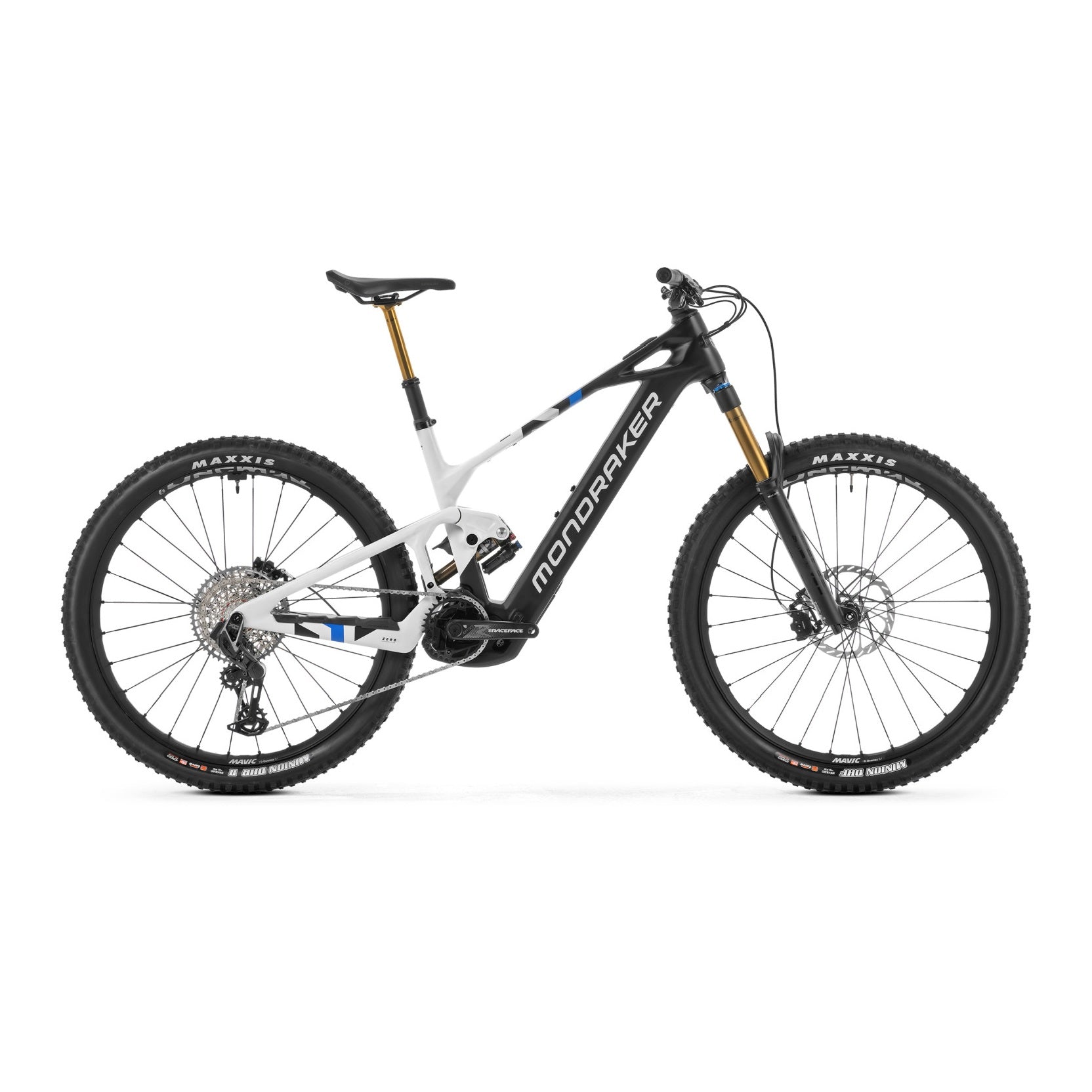

MONDRAKER CRAFTY RR S

$7,199.99 $8,999.99
Color: Aspen White
Size

Buy online and pickup in our Boulder, CO showroom.
(Shipping not available on this product.)
Not seeing exactly what you want, or you'd rather deal with a real human? Give us a call or send us an email and we'll help you out. We have inventory in our physical store that might not be on our website, and we can also custom order (almost) anything!

The Mondraker Crafty Carbon RR S is a cutting-edge eMTB designed for riders who demand premium performance, unmatched capability, and the thrill of endless trails. Built around Mondraker's lightweight Stealth Air Carbon frame, this bike blends the brand's signature forward geometry with electric-assisted precision. Whether you're conquering steep climbs or powering through rugged descents, the Crafty Carbon RR S redefines what an eMTB can do.

FEATURES

  • Stealth Air Carbon Frame with Forward Geometry
  • Bosch Performance Line CX Motor with 750Wh Battery
  • Fox 38 Float GRIP2 Factory Fork with 160mm Travel
  • Fox Float X2 Rear Shock with 150mm Travel
  • SRAM GX Eagle AXS 12-Speed Drivetrain
  • Maxxis Minion DHF & DHR II 29” Tires

TECH SPECS

Frame Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

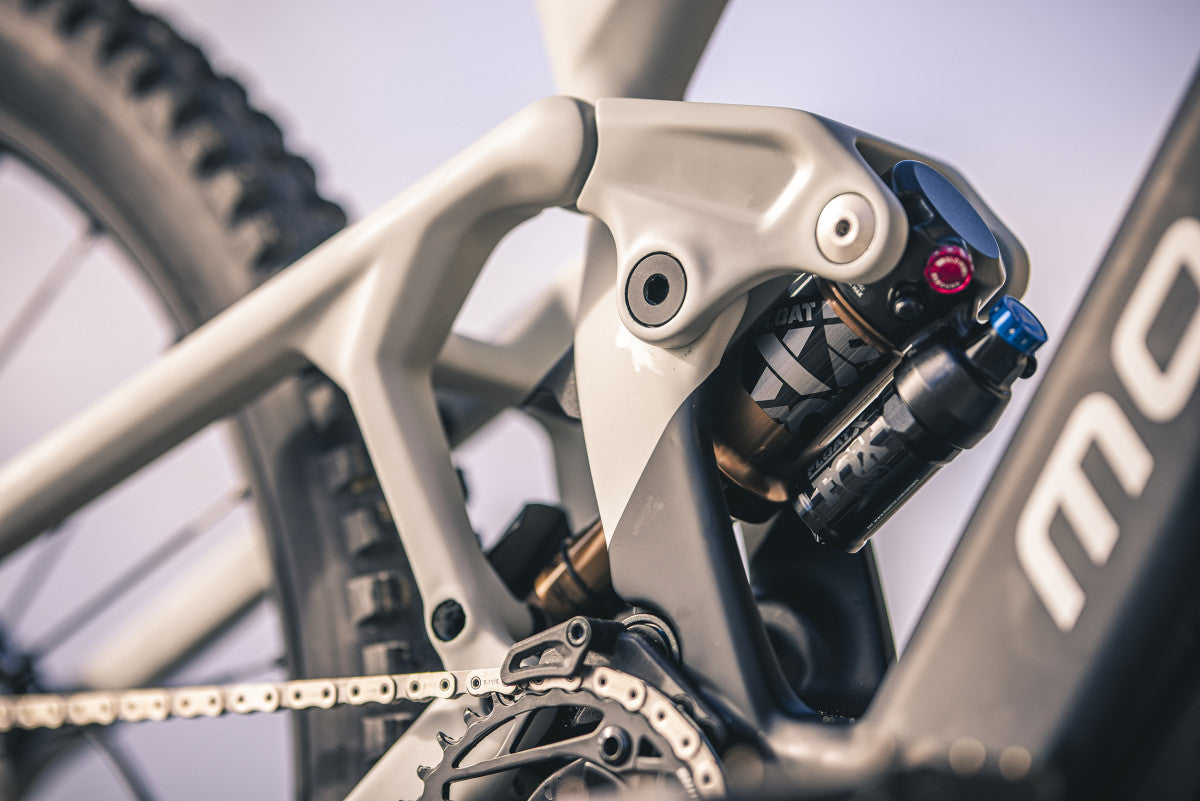

Rear Shock Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

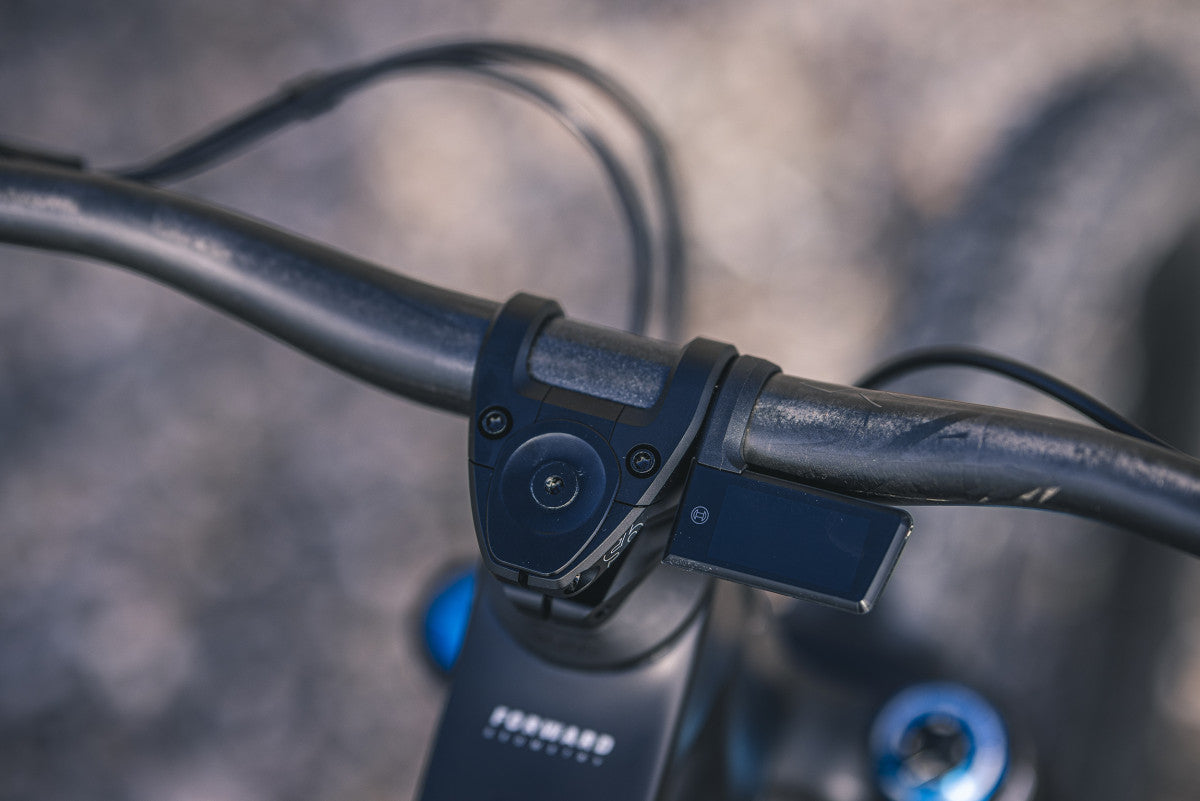

Stem Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle Ergon SM-10
Front Brake Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes Mavic straight-pull double butted, contactless lacing
Front Hub Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front Tire Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear Tire Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset Race Face Aeffect-R ebike, 160mm
Rings Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain Sram GX Eagle T-Type, 12s, Powerlock
Rear Derailleur Sram X0 Eagle AXS, T-Type, 12s
Shift Levers Sram Eagle AXS Pod MMX, 12s
Cassette Sram XS-1295, 10-52T, T-Type, 12s
Weight 49.8 lbs
Display Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)
Battery Bosch Powertube 600Wh
*Please note that bike specifications are subject to change without prior notice
